Radium Engineering 2013+ Ford Focus ST/ 16+ Focus RS Port Injection Kit
- Regular price
- $379.99 USD
- Regular price
- Sale price
- $379.99 USD
- Unit price

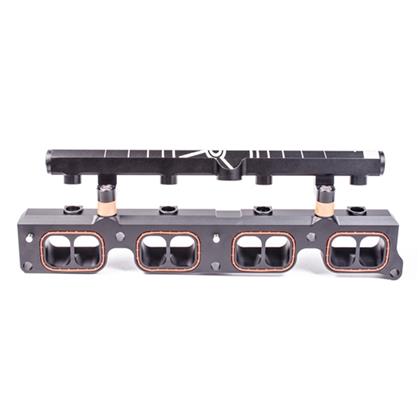

Description: The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower Ford EcoBoost engines. This kit does NOT replace the OEM direction injection system.

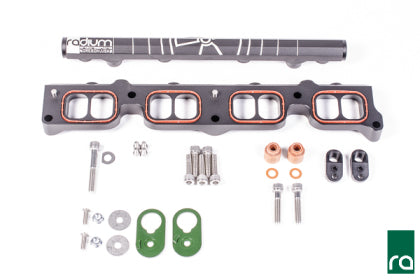

The kit includes the PIK adapter plate, custom fuel rail, fuel rail mounting hardware, and OEM Ford gaskets, as shown in the below picture. Stainless steel dowels are pressed into the adapter plate to make alignment during installation easier. It is compatible with all fuel types including popular alcohol mixtures such as E85.
The 6061 CNC machined aluminum adapter features a smoothed port divider promoting laminar flow into the combustion chambers. The injector spray pattern is divided evenly into each runner.
The angled air flow passages through the PIK adapter plate are CAD matched to the intake ports and manifold to minimize any impact to air flow through the ports.
The fuel rail features a large 0.69" internal diameter bore. It is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. All 3 ports (ends and center) are machined with an 8AN ORB (3/4-16 female) port. Machined phenolic mounting spacers and washers are included to completely isolate fuel created by the cylinder head and transferred through the mounting bolts. The injectors are at a max angle to ensure proper spray into the ports.
Special CNC machined aluminum adapter brackets are included to relocate the mounting grommets. This allows the OEM Ford Focus Engine Covers (ONLY) to be reused for a stealth appearance.
This kit is designed for specific upper and lower O-ring spacing, as depicted below. The upper and lower injector O-rings must be 14mm diameter. Consult the fitment guide before purchasing injectors (Radium does not sell injectors).
Below are some of the many fuel injectors that are compatible with this kit:
Injector Dynamics ID850-34-14-14
Injector Dynamics ID1050x-34-14-14
Injector Dynamics ID1300-34-14-14
Injector Dynamics ID1700-34-14-14
Injector Dynamics ID2000-34-14-14
Evolved Injection DPI550-38-14-14
Evolved Injection DPI650-38-14-14
Evolved Injection DPI850-38-14-14
Evolved Injection DPI1000-38-14-14
Evolved Injection DPI1200-38-14-14
Evolved Injection DPI1300-38-14-14
Evolved Injection DPI2200-38-14-14
RC Engineering SM2-0310
RC Engineering SM2-0370
RC Engineering SM2-0450
*NOTE: Fuel injectors, port fittings, fuel hose, wiring, injector controller, etc. are NOT included.*
2016-2017 Ford Focus RS L4.2300cc Fuel Delivery::Fuel Rails
2013-2017 Ford Focus ST L4.1999cc Fuel Delivery::Fuel Rails
2015-2017 Ford Mustang EcoBoost L4.2300cc Fuel Delivery::Fuel Rails
2015-2017 Ford Mustang EcoBoost Premium L4.2300cc Fuel Delivery::Fuel Rails
