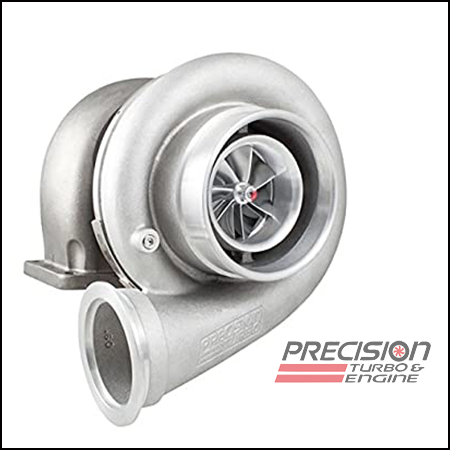

Precision PT6266 CEA Turbocharger - T3 Open .63 A/R

Deliver exceptional forced-induction power and rapid spoolup with the Precision Turbo & Engine (PTE) PT6266 CEA® Turbocharger. Rated up to 735 horsepower, this dual ball bearing turbocharger features Competition Engineered Aerodynamics (CEA®) technology on both the compressor and turbine wheels for a 30 to 45 horsepower increase over standard turbine wheels of similar dimensions.

Featuring a billet 2618-aluminum 62mm CEA® compressor wheel, a high-flow 66mm CEA® turbine wheel, and an air-cooled dual ceramic ball bearing CHRA, the PT6266 is available across a versatile range of T3, T4 open, T4 divided, and investment-cast stainless steel V-band turbine housing options.

Key Features & Benefits:

• CEA® Billet Aerodynamics: Billet 2618-aluminum 62mm compressor wheel and 66mm turbine wheel deliver superior efficiency and rapid spoolup.
• 735 HP Performance Rating: Compact frame size supports up to 735 HP for high-output street and track builds.
• Air-Cooled Dual Ceramic Ball Bearing: Air-cooled CHRA provides smooth shaft rotation, reduced friction, and thermal durability under severe race conditions.
• Versatile Turbine Configurations: Offered in T3, T4 open, T4 divided, and stainless steel V-band housings across a wide range of A/R ratios.

Technical Specifications:

• Horsepower Rating: 735 HP
• Compressor Wheel Inducer: 62mm CEA® Billet
• Turbine Wheel Exducer: 66mm CEA® High-Flow
• Bearing Center Section: Dual Ceramic Ball Bearing (BB)
• Warranty: Precision Turbo 1-Year Limited Manufacturer Warranty
• Brand: Precision Turbo & Engine
