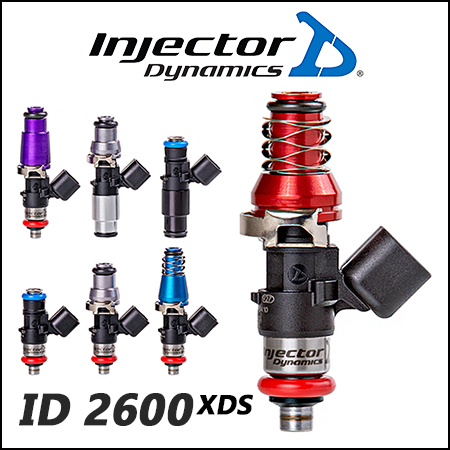

Injector Dynamics ID2600-XDS Fuel Injectors Set (BMW E30 M3 / Nissan SR20DET / Ford Focus / Toyota 3S-GTE - 14mm / 2600cc)

Deliver extreme fuel flow and precise low-pulsewidth metering with the Injector Dynamics ID2600-XDS Fuel Injectors Set (Part # idx2600.60.14.14.4) for 4-cylinder performance engines utilizing 14mm fuel rails. Developed in partnership with Bosch Motorsport, the ID2600-XDS is the highest-flowing injector offered by Bosch, flowing 50% more than the ID1700x to support 1,000+ horsepower on alcohol and E85 fuels.

Featuring all-new corrosion-resistant internal construction and Dual Slope Matching technology, the ID2600-XDS delivers linear flow matching in both linear and non-linear operating ranges for exceptional idle stability and cylinder-to-cylinder consistency. Configured in a standard 60mm length with 14mm top and 14mm lower purple O-ring adapters, this set of 4 injectors plugs directly into 14mm fuel rail applications.

Key Features & Benefits:

• 2600cc High-Output Flow: Nominal flow rate of 2600cc/min @ 3.0 Bar (43.5 psi) supports extreme forced-induction and high-horsepower 4-cylinder builds.
• Dual Slope Flow Matching: Matched in both linear and non-linear pulse-width ranges for smooth idle, crisp throttle response, and precise fuel distribution.
• Extreme Fuel Compatibility: Corrosion-resistant internals fully compatible with Methanol, Ethanol, E85, race gas, and pump gasoline.
• Direct 14mm Rail Fitment: Standard 60mm overall length with 14mm top / 14mm bottom O-rings and USCAR electrical connectors.

Vehicle Fitment & Compatibility:

• BMW: 1988–1991 E30 M3 (S14 2.3L / 2.5L)
• Ford: Focus ZX3, Focus SVT, Focus RS Mk1 (2.0L Turbo), Mustang SVO (2.3L Turbo)
• Hyundai: 2013–2014 Genesis Coupe 2.0T
• Infiniti: 1991–1996 & 1999–2002 G20 (SR20DE 14mm Fuel Rail)
• Nissan: 1989–2002 240SX / Silvia S13, S14, S15 (14mm Fuel Rail), Sentra SE-R / Primera (SR20DET FWD 14mm Rail)
• Saturn: Ion Redline (2.0L LSJ Supercharged), Sky (2.4L LE5 Non-Turbo)
• Toyota: 1990–1996 MR2 Turbo (3S-GTE 14mm Rail), 1989–1999 Celica All-Trac / GT-Four (3S-GTE 14mm Rail)

Technical Specifications:

• Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 9.0 Bar (130.5 psi)

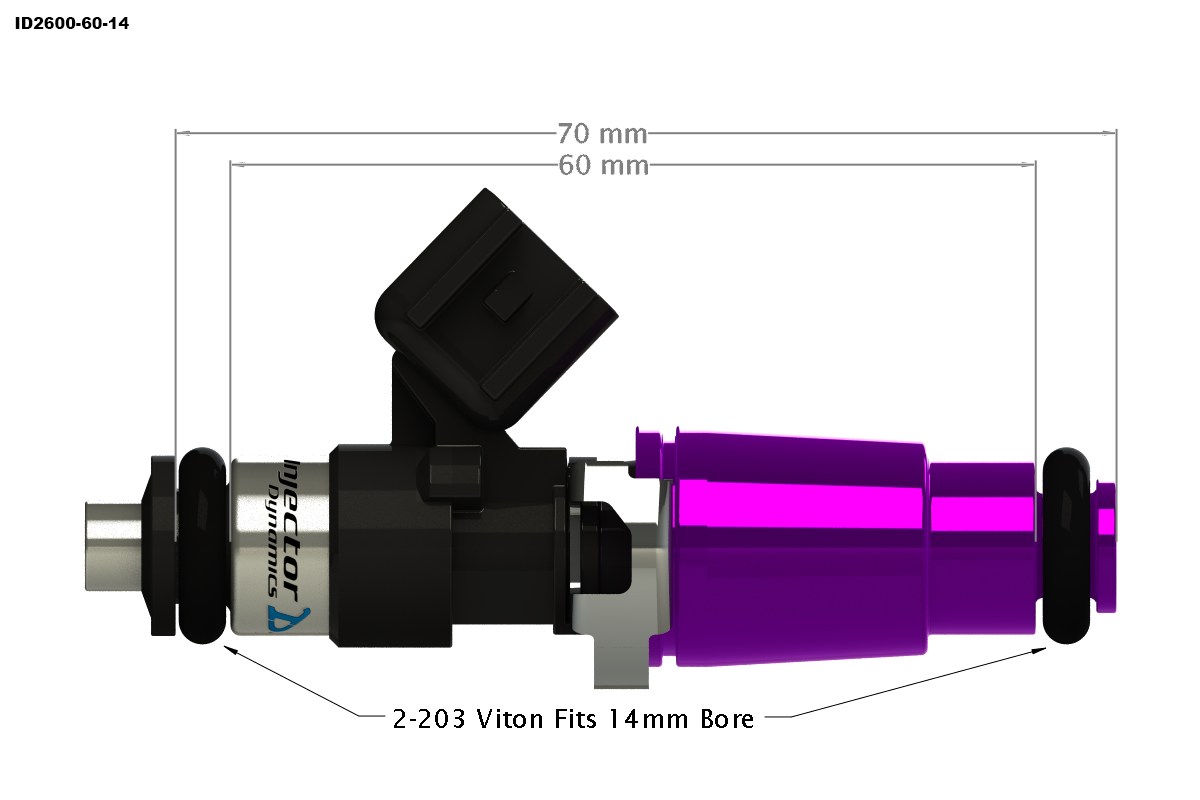

• Injector Length & O-Rings: 60mm Length / 14mm Top O-Ring / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Methanol, Ethanol, E85, Gasoline (Not compatible with MTBE, ETBE, TAME, or Nitromethane)
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
