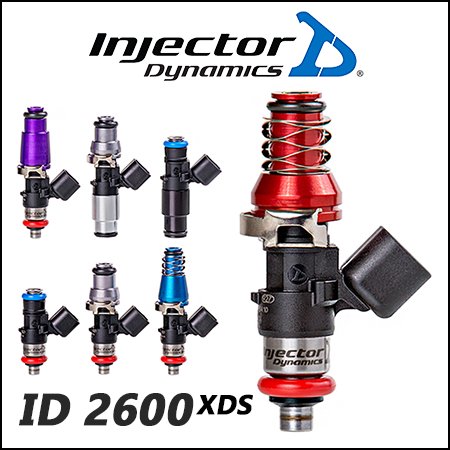

Injector Dynamics ID2600-XDS Fuel Injectors Set (Honda Civic / Integra / Nissan SR20DET / Toyota 3S-GTE - 11mm / 2600cc)

Deliver extreme fuel flow and precise low-pulsewidth metering with the Injector Dynamics ID2600-XDS Fuel Injectors Set (Part # idx2600.60.11.14.4) for 4-cylinder performance engines utilizing 11mm fuel rails. Developed in partnership with Bosch Motorsport, the ID2600-XDS is the highest-flowing injector offered by Bosch, flowing 50% more than the ID1700x to support 1,000+ horsepower on alcohol and E85 fuels.

Featuring all-new corrosion-resistant internal construction and Dual Slope Matching technology, the ID2600-XDS delivers linear flow matching in both linear and non-linear operating ranges for exceptional idle stability and cylinder-to-cylinder consistency. Configured in a standard 60mm length with 11mm top and 14mm lower O-ring adapters, this set of 4 injectors plugs directly into 11mm fuel rail applications.

Key Features & Benefits:

• 2600cc High-Output Flow: Nominal flow rate of 2600cc/min @ 3.0 Bar (43.5 psi) supports extreme forced-induction and high-horsepower 4-cylinder builds.
• Dual Slope Flow Matching: Matched in both linear and non-linear pulse-width ranges for smooth idle, crisp throttle response, and precise fuel distribution.
• Extreme Fuel Compatibility: Corrosion-resistant internals fully compatible with Methanol, Ethanol, E85, race gas, and pump gasoline.
• Direct 11mm Rail Fitment: Standard 60mm overall length with 11mm top / 14mm bottom O-rings and USCAR electrical connectors.

Vehicle Fitment & Compatibility:

• Honda / Acura: 1988–2000 Civic (D15 / D16 / B16), 1990–2001 Integra (B18A1 / B18B1 / B18C1 / B18C5), 1992–2002 Accord (F22 / F23 / H22), 1992–2001 Prelude (H22A / H23A)
• Infiniti: 1991–1996 & 1999–2002 G20 (SR20DE 11mm Fuel Rail)
• Nissan: 1989–2002 240SX / Silvia S13, S14, S15 (11mm Fuel Rail), Sentra SE-R / Primera (SR20DET FWD 11mm Rail)
• Toyota: 1990–1996 MR2 Turbo (3S-GTE 11mm Rail), 1989–1999 Celica All-Trac / GT-Four (3S-GTE 11mm Rail)

Technical Specifications:

• Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 9.0 Bar (130.5 psi)

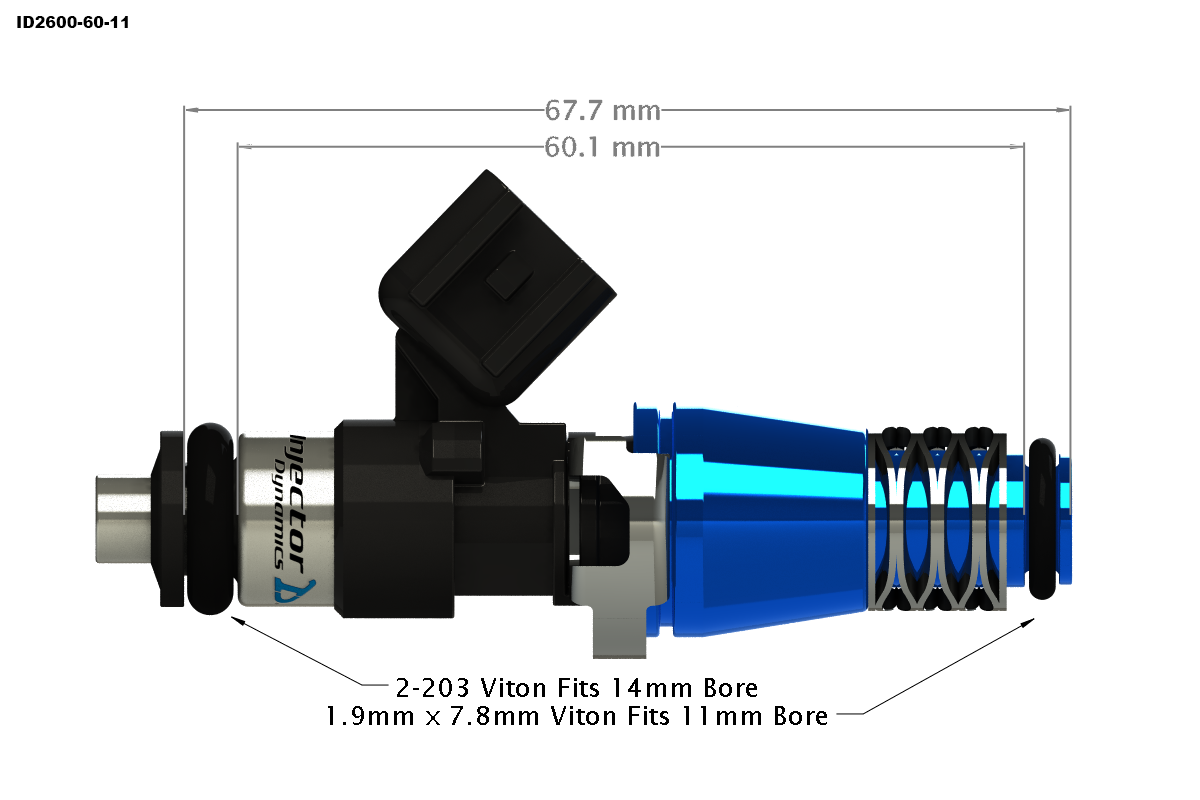

• Injector Length & O-Rings: 60mm Length / 11mm Top O-Ring / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Methanol, Ethanol, E85, Gasoline (Not compatible with MTBE, ETBE, TAME, or Nitromethane)
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
