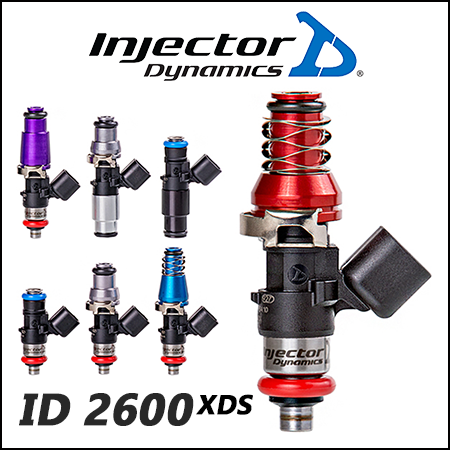

Injector Dynamics ID2600-XDS Fuel Injectors Set (GM LS3 / LS7 / L76 / L92 / L99 / LSA - 2600cc)

Deliver extreme fuel flow and precise low-pulsewidth metering with the Injector Dynamics ID2600-XDS Fuel Injectors Set (Part # idx2600.34.14.15.8) for GM LS3, LS7, L76, L92, L99, LSA, and LS9 V8 engines. Developed in partnership with Bosch Motorsport, the ID2600-XDS is the highest-flowing injector offered by Bosch, flowing 50% more than the ID1700x to support 2,000+ horsepower on alcohol and E85 fuels.

Featuring all-new corrosion-resistant internal construction and Dual Slope Matching technology, the ID2600-XDS delivers linear flow matching in both linear and non-linear operating ranges for exceptional idle stability and cylinder-to-cylinder consistency. Configured in a 34mm short length with 14mm top and 15mm lower O-rings, this set of 8 injectors plugs directly into GM LS3/LS7/LSA intake fuel rails.

Key Features & Benefits:

• 2600cc High-Output Flow: Nominal flow rate of 2600cc/min @ 3.0 Bar (43.5 psi) supports extreme forced-induction and high-horsepower V8 builds.
• Dual Slope Flow Matching: Matched in both linear and non-linear pulse-width ranges for smooth idle, crisp throttle response, and precise fuel distribution.
• Extreme Fuel Compatibility: Corrosion-resistant internals fully compatible with Methanol, Ethanol, E85, race gas, and pump gasoline.
• Direct GM LS3/LS7/LSA Fitment: 34mm short length with 14mm top and 15mm lower O-rings with USCAR electrical connectors for direct installation.

Vehicle Fitment & Compatibility:

• Cadillac: 2009–2015 CTS-V (6.2L LSA Supercharged)
• Chevrolet: 2008–2013 Corvette C6 (6.2L LS3), 2006–2013 Corvette Z06 (7.0L LS7), 2009–2013 Corvette ZR1 (6.2L LS9), 2010–2015 Camaro SS (6.2L LS3/L99), 2012–2015 Camaro ZL1 (6.2L LSA), 2014–2015 Camaro Z28 (7.0L LS7), 2014–2017 SS Sedan (6.2L LS3), 2007–2014 GM Trucks & SUVs (6.2L L92/L94/L99)
• Pontiac: 2008–2009 G8 GT (6.0L L76), 2009 G8 GXP (6.2L LS3)

Technical Specifications:

• Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 9.0 Bar (130.5 psi)

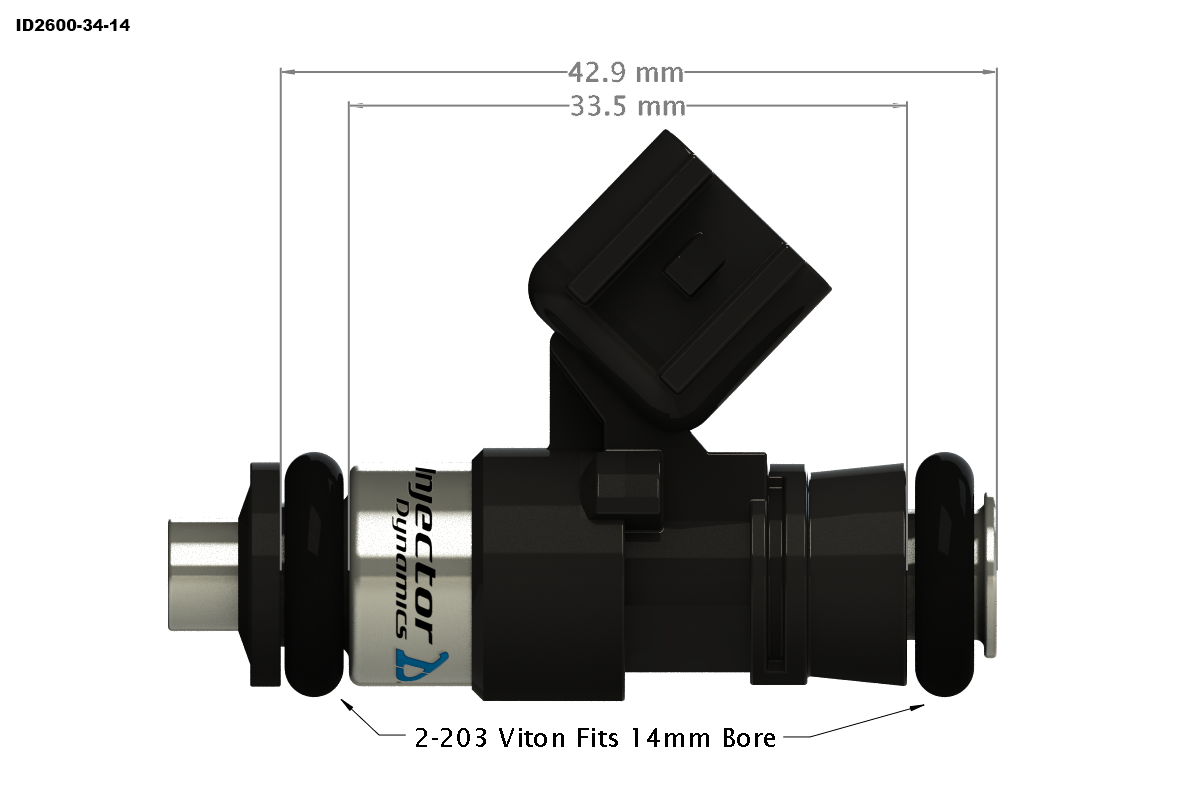

• Injector Length & O-Rings: 34mm Length / 14mm Top O-Ring / 15mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Methanol, Ethanol, E85, Gasoline (Not compatible with MTBE, ETBE, TAME, or Nitromethane)
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
