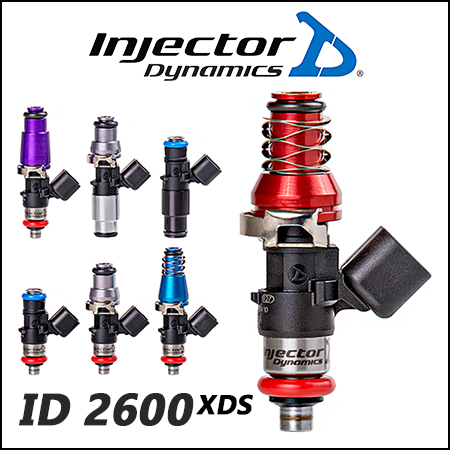

Injector Dynamics ID2600-XDS Fuel Injectors Set (GM LS1 / LS6 - 2600cc)

Deliver extreme fuel flow and precise low-pulsewidth metering with the Injector Dynamics ID2600-XDS Fuel Injectors Set (Part # idx2600.60.14.14.8) for GM LS1 and LS6 V8 engines. Developed in partnership with Bosch Motorsport, the ID2600-XDS is the highest-flowing injector offered by Bosch, flowing 50% more than the ID1700x to support 2,000+ horsepower on alcohol and E85 fuels.

Featuring all-new corrosion-resistant internal construction and Dual Slope Matching technology, the ID2600-XDS delivers linear flow matching in both linear and non-linear operating ranges for exceptional idle stability and cylinder-to-cylinder consistency. Configured in a 60mm length with 14mm top and lower O-rings, this set of 8 injectors plugs directly into standard LS1/LS6 intake fuel rails.

Key Features & Benefits:

• 2600cc High-Output Flow: Nominal flow rate of 2600cc/min @ 3.0 Bar (43.5 psi) supports extreme forced-induction and high-horsepower builds.
• Dual Slope Flow Matching: Matched in both linear and non-linear pulse-width ranges for smooth idle, crisp throttle response, and precise fuel distribution.
• Extreme Fuel Compatibility: Corrosion-resistant internals fully compatible with Methanol, Ethanol, E85, race gas, and pump gasoline.
• Direct LS1/LS6 Fitment: 60mm overall length with 14mm top/bottom O-rings and USCAR electrical connectors for easy installation.

Technical Specifications:

• Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 9.0 Bar (130.5 psi)

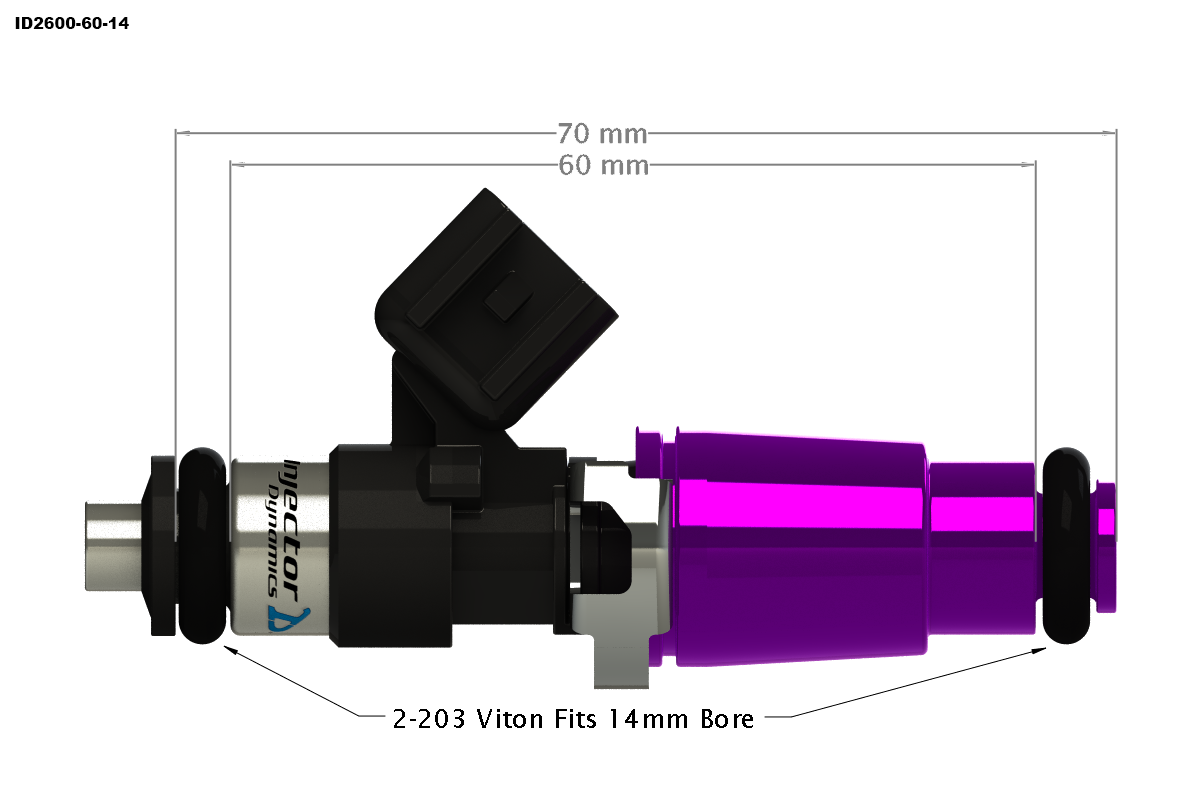

• Injector Length & O-Rings: 60mm Length / 14mm Top O-Ring / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Methanol, Ethanol, E85, Gasoline (Not compatible with MTBE, ETBE, TAME, or Nitromethane)
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
