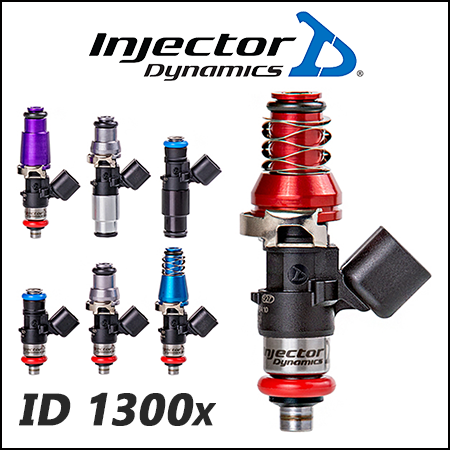

Injector Dynamics ID1300x² Fuel Injectors Set (GM LS3 / LS7 / L76 / L92 / L99 / LSA - 34mm / 1335cc)

Achieve unmatched fuel delivery and alternative-fuel compatibility with the Injector Dynamics ID1300x² Fuel Injectors Set (Part # idx1300.34.14.15.8) for GM LS3, LS7, L76, L92, L99, LSA, and LS9 V8 engines. Co-developed with Bosch Motorsport, the ID1300x² features all-stainless steel internals designed specifically for the corrosive characteristics of ethanol and methanol while maintaining linear low-pulsewidth metering for smooth gasoline idle and drivability.

Its compact body profile and advanced magnetic circuit provide pressure-immune performance across extreme operating ranges. Configured in a 34mm short length with 14mm top and 15mm lower O-rings, this set of 8 injectors plugs directly into standard LS3/LS7/LSA intake fuel rails.

Key Features & Benefits:

• 1335cc High-Output Flow: Nominal flow rate of 1335cc/min @ 3.0 Bar (43.5 psi) supports forced-induction builds up to 1,200+ horsepower.
• All-Stainless Steel Internals: Maximum resistance to corrosive alternative fuels including E85, Ethanol, and Methanol with full gasoline compatibility.
• Motorsport-Grade Linearity: Engineered for exceptional low pulse-width control to ensure smooth idle and crisp throttle response.
• Direct GM LS3/LS7/LSA Fitment: 34mm short length with 14mm top and 15mm lower O-rings with USCAR electrical connectors for direct installation.

Vehicle Fitment & Compatibility:

• Cadillac: 2009–2015 CTS-V (6.2L LSA Supercharged)
• Chevrolet: 2008–2013 Corvette C6 (6.2L LS3), 2006–2013 Corvette Z06 (7.0L LS7), 2009–2013 Corvette ZR1 (6.2L LS9), 2010–2015 Camaro SS (6.2L LS3/L99), 2012–2015 Camaro ZL1 (6.2L LSA), 2014–2015 Camaro Z28 (7.0L LS7), 2014–2017 SS Sedan (6.2L LS3), 2007–2014 GM Trucks & SUVs (6.2L L92/L94/L99)
• Holden: Commodore W427, Commodore E-HSV (LS3 / LS7 V8)
• Pontiac: 2008–2009 G8 GT (6.0L L76), 2009 G8 GXP (6.2L LS3)

Technical Specifications:

• Nominal Flow Rate: 1335cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 7.0 Bar (101.5 psi)

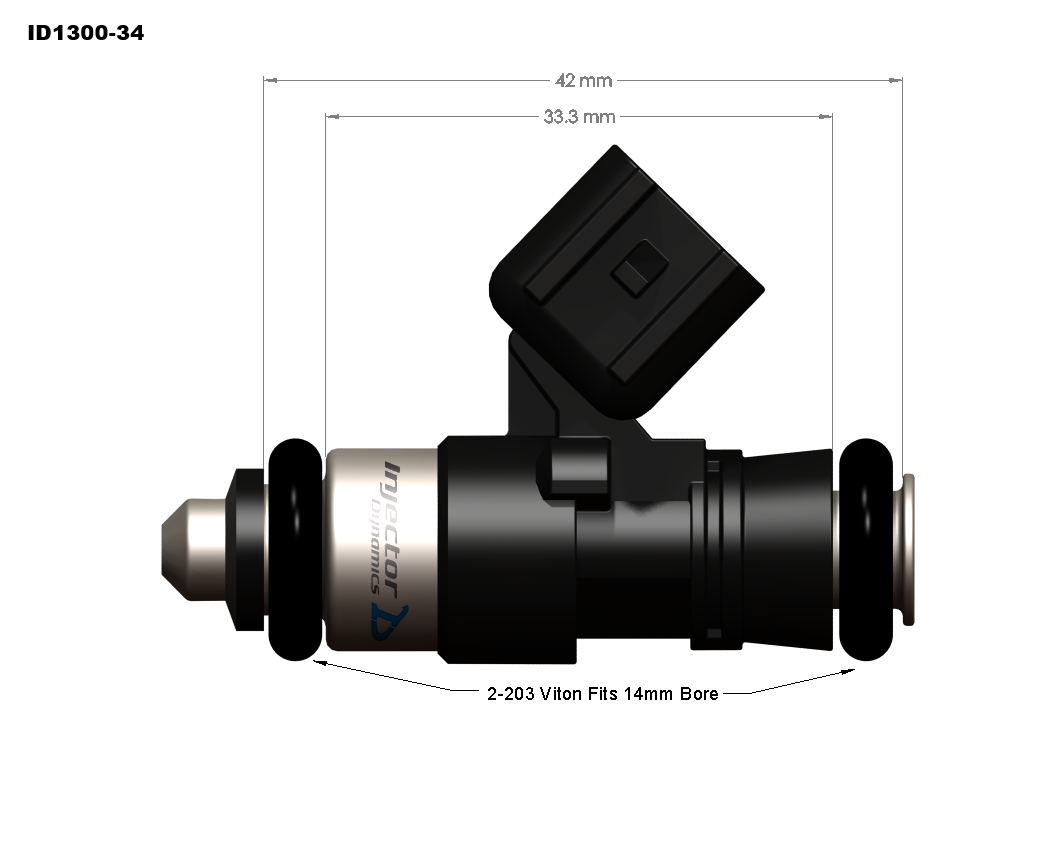

• Injector Length & O-Rings: 34mm Length / 14mm Top O-Ring / 15mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
