Injector Dynamics ID1300x² Fuel Injectors Set (GM LS2 - 48mm / 1335cc)

Achieve unmatched fuel delivery and alternative-fuel compatibility with the Injector Dynamics ID1300x² Fuel Injectors Set (Part # idx1300.48.14.15.8) for GM LS2 V8 engines. Co-developed with Bosch Motorsport, the ID1300x² features all-stainless steel internals designed specifically for the corrosive characteristics of ethanol and methanol while maintaining linear low-pulsewidth metering for smooth gasoline idle and drivability.

Its compact body profile and advanced magnetic circuit provide pressure-immune performance across extreme operating ranges. Configured in a 48mm length with 14mm top and 15mm lower O-rings, this set of 8 injectors plugs directly into standard LS2 intake fuel rails.

Key Features & Benefits:

• 1335cc High-Output Flow: Nominal flow rate of 1335cc/min @ 3.0 Bar (43.5 psi) supports forced-induction builds up to 1,200+ horsepower.
• All-Stainless Steel Internals: Maximum resistance to corrosive alternative fuels including E85, Ethanol, and Methanol with full gasoline compatibility.
• Motorsport-Grade Linearity: Engineered for exceptional low pulse-width control to ensure smooth idle and crisp throttle response.
• Direct LS2 Fitment: 48mm overall length with 14mm top / 15mm bottom O-rings and USCAR electrical connectors for direct installation.

Technical Specifications:

• Nominal Flow Rate: 1335cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 7.0 Bar (101.5 psi)

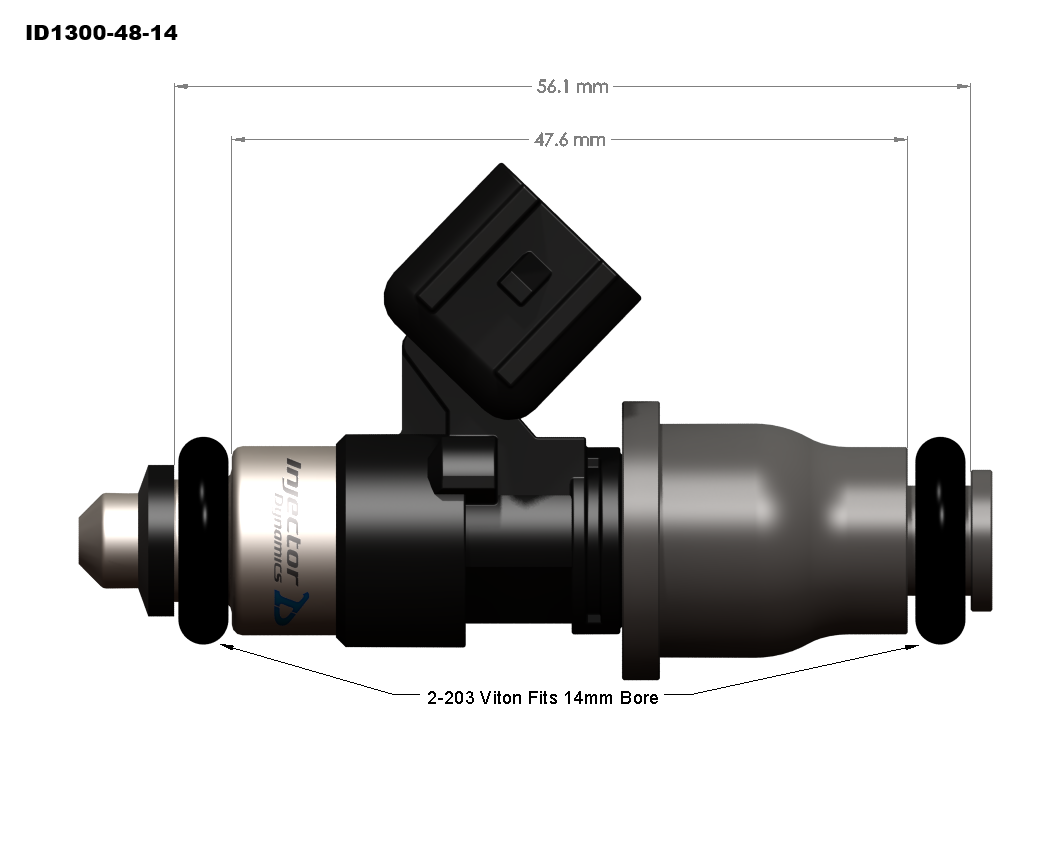

• Injector Length & O-Rings: 48mm Length / 14mm Top O-Ring / 15mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
