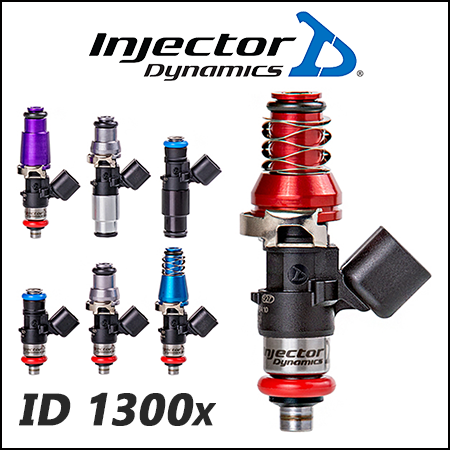

Injector Dynamics ID1300x² Fuel Injectors Set (GM LS1 / LS6 / Pontiac Firebird & GTO - 14mm / 1335cc)

Achieve unmatched fuel delivery and alternative-fuel compatibility with the Injector Dynamics ID1300x² Fuel Injectors Set (Part # idx1300.60.14.14.8) for GM LS1, LS6, LT1, Ford Mustang GT, and Pontiac Firebird / GTO V8 engines. Co-developed with Bosch Motorsport, the ID1300x² features all-stainless steel internals designed specifically for the corrosive characteristics of ethanol and methanol while maintaining linear low-pulsewidth metering for smooth gasoline idle and drivability.

Its compact body profile and advanced magnetic circuit provide pressure-immune performance across extreme operating ranges. Configured in a standard 60mm length with 14mm top and 14mm lower O-rings, this set of 8 injectors plugs directly into 60mm long-body 14mm intake fuel rails.

Key Features & Benefits:

• 1335cc High-Output Flow: Nominal flow rate of 1335cc/min @ 3.0 Bar (43.5 psi) supports forced-induction builds up to 1,200+ horsepower.
• All-Stainless Steel Internals: Maximum resistance to corrosive alternative fuels including E85, Ethanol, and Methanol with full gasoline compatibility.
• Motorsport-Grade Linearity: Engineered for exceptional low pulse-width control to ensure smooth idle and crisp throttle response.
• Direct 60mm / 14mm Fitment: Standard 60mm overall length with 14mm top and 14mm bottom O-rings and USCAR electrical connectors.

Vehicle Fitment & Compatibility:

• BMW: 1993–2001 540i / 740i (M60 / M62 4.0L/4.4L V8 with 14mm long-body rails)
• Chevrolet / GM: 1997–2004 Corvette C5 / Z06 (LS1 / LS6), 1998–2002 Camaro SS (LS1), 1993–1997 Camaro (LT1)
• Ford: 1988–2010 Mustang GT (5.0L V8 & 4.6L 2V/3V), 1999–2004 Mustang SVT Cobra (4.6L 4V Supercharged), 1999–2004 F-150 SVT Lightning / Harley-Davidson (5.4L Supercharged)
• Holden: Commodore VTII, VX, VY, and Monaro (5.7L LS1 V8)
• Pontiac: 1993–1997 Firebird / Trans-Am (LT1), 1998–2002 Firebird / Trans-Am (LS1), 2004 GTO (LS1)

Technical Specifications:

• Nominal Flow Rate: 1335cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 7.0 Bar (101.5 psi)

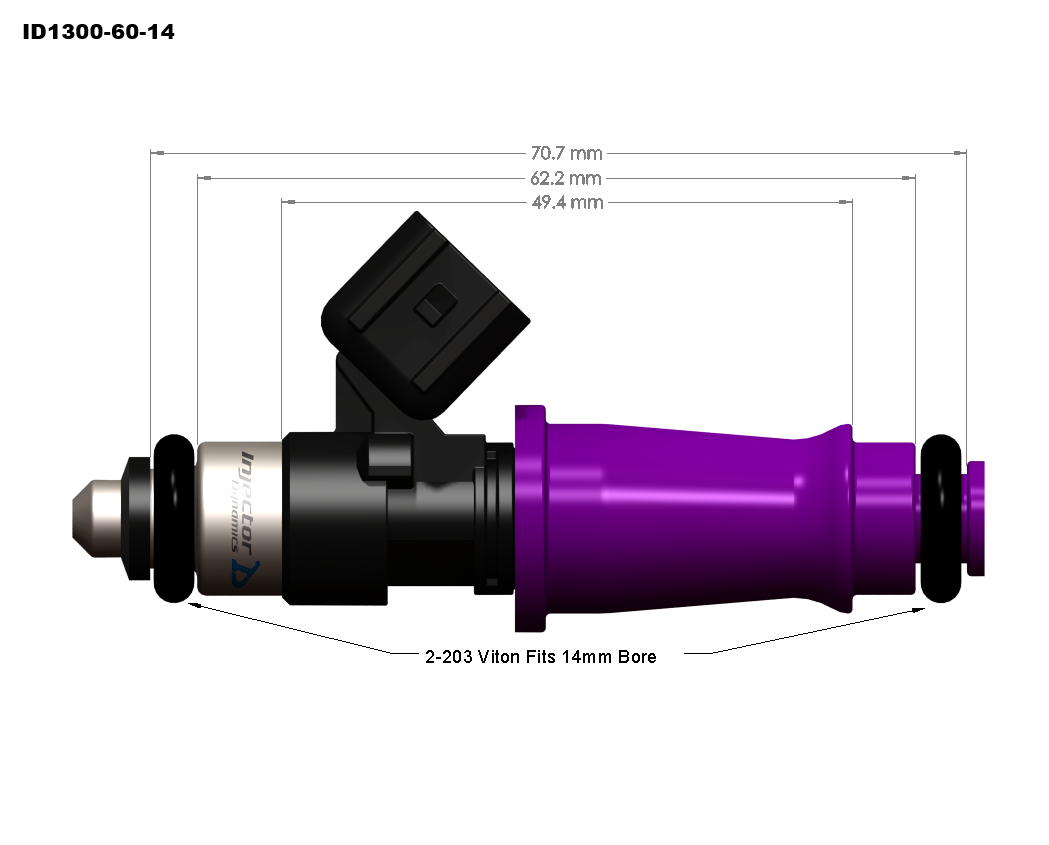

• Injector Length & O-Rings: 60mm Length / 14mm Top O-Ring / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
