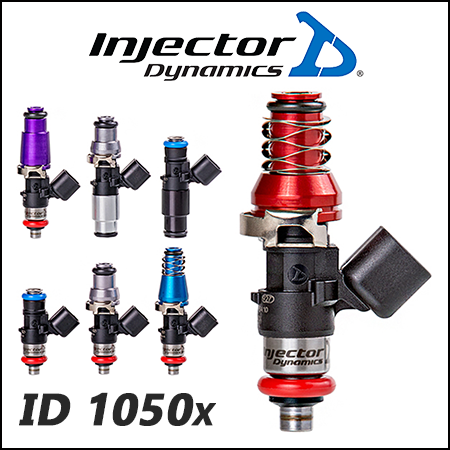

Injector Dynamics ID1050x Fuel Injectors Set (Nissan SR20DET / Hyundai Genesis 2.0T / Ford Focus - 14mm / 1065cc)

Deliver precise fuel metering and all-fuel reliability with the Injector Dynamics ID1050x Fuel Injectors Set (Part # idx1050.60.14.14.4) for 4-cylinder performance engines utilizing 14mm fuel rails. As the evolution of the legendary ID1000, the ID1050x features corrosion-resistant internal construction and an optimized magnetic circuit that eliminates voltage and pressure sensitivity issues common in high-flow motorsport injectors.

Featuring compact body architecture and robust construction, this set of 4 injectors is fully compatible with ethanol, E85, methanol, and race gas while maintaining exceptional low pulse-width linearity for smooth gasoline idle. Configured in a standard 60mm length with 14mm top adapters and 14mm lower O-rings, this set plugs directly into 14mm intake fuel rails.

Key Features & Benefits:

• 1065cc High-Performance Flow: Nominal flow rate of 1065cc/min @ 3.0 Bar (43.5 psi) supports high-output forced-induction builds up to 900 horsepower.
• All-Fuel Compatibility: Corrosion-resistant stainless steel internal components ensure extended service life with ethanol, E85, and methanol.
• Superior Low-Pulse Linearity: Exceptional idle quality and low-speed drivability on gasoline combined with high-flow stability.
• Direct 14mm Rail Fitment: Standard 60mm overall length with 14mm top adapters and 14mm bottom O-rings with USCAR electrical connectors.

Vehicle Fitment & Compatibility:

• BMW: 1988–1991 E30 M3 (S14 with 14mm fuel rail conversion)
• Ford: 2000–2004 Focus ZX3 / SVT / RS, 1984–1986 Mustang SVO (2.3L Turbo with 14mm rail)
• Hyundai: 2013–2014 Genesis Coupe 2.0T
• Infiniti: 1991–1996 & 1999–2002 G20 (SR20DE with 14mm fuel rail)
• Nissan: 1989–2002 240SX / Silvia S13, S14, S15 (11mm/14mm rail conversion), Sentra SE-R / Primera (SR20DET FWD 14mm rail)
• Saturn: 2004–2007 Ion Redline (2.0L Supercharged), Sky (Non-turbo)
• Toyota: 1990–1996 MR2 Turbo (3S-GTE with 14mm fuel rail), 1989–1999 Celica All-Trac / GT-Four (3S-GTE with 14mm fuel rail)

Technical Specifications:

• Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 10.0 Bar (145.0 psi)

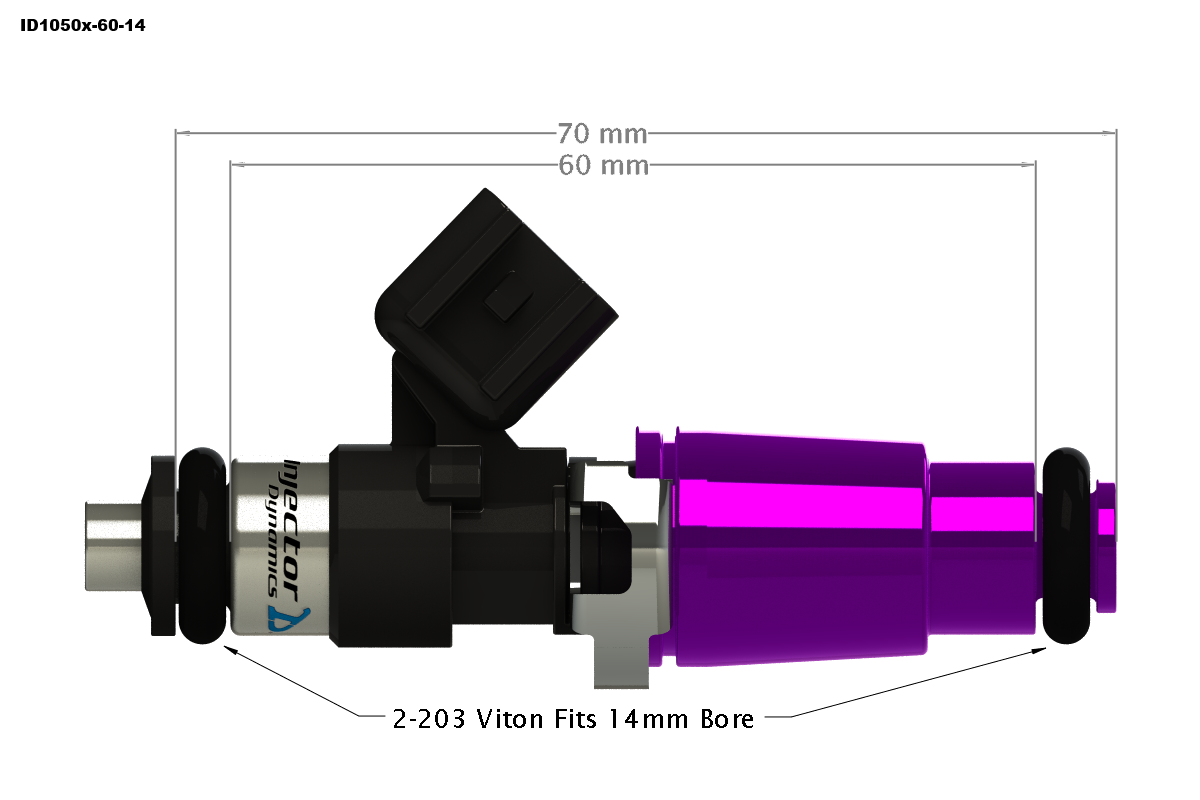

• Injector Length & O-Rings: 60mm Length / 14mm Top Adapter / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
