Injector Dynamics ID1050x Fuel Injectors Set (Honda Civic / Integra / Nissan SR20DET / Toyota 3S-GTE - 11mm / 1065cc)

Deliver precise fuel metering and all-fuel reliability with the Injector Dynamics ID1050x Fuel Injectors Set (Part # idx1050.60.11.14.4) for 4-cylinder performance engines utilizing 11mm fuel rails. As the evolution of the legendary ID1000, the ID1050x features corrosion-resistant internal construction and an optimized magnetic circuit that eliminates voltage and pressure sensitivity issues common in high-flow motorsport injectors.

Featuring compact body architecture and robust construction, this set of 4 injectors is fully compatible with ethanol, E85, methanol, and race gas while maintaining exceptional low pulse-width linearity for smooth gasoline idle. Configured in a standard 60mm length with 11mm top adapters and 14mm lower O-rings, this set plugs directly into 11mm intake fuel rails.

Key Features & Benefits:

• 1065cc High-Performance Flow: Nominal flow rate of 1065cc/min @ 3.0 Bar (43.5 psi) supports high-output forced-induction builds up to 900 horsepower.
• All-Fuel Compatibility: Corrosion-resistant stainless steel internal components ensure extended service life with ethanol, E85, and methanol.
• Superior Low-Pulse Linearity: Exceptional idle quality and low-speed drivability on gasoline combined with high-flow stability.
• Direct 11mm Rail Fitment: Standard 60mm overall length with 11mm top adapters and 14mm bottom O-rings with USCAR electrical connectors.

Vehicle Fitment & Compatibility:

• Honda / Acura: 1988–2000 Civic (D15 / D16 / B16), 1990–2001 Integra (B18A1 / B18B1 / B18C1 / B18C5), 1992–2002 Accord (F22 / F23 / H22), 1992–2001 Prelude (H22A / H23A)
• Infiniti: 1991–1996 & 1999–2002 G20 (SR20DE 11mm Fuel Rail)
• Nissan: 1989–2002 240SX / Silvia S13, S14, S15 (11mm Fuel Rail), Sentra SE-R / Primera (SR20DET FWD 11mm Rail)
• Toyota: 1990–1996 MR2 Turbo (3S-GTE 11mm Rail), 1989–1999 Celica All-Trac / GT-Four (3S-GTE 11mm Rail)

Technical Specifications:

• Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 10.0 Bar (145.0 psi)

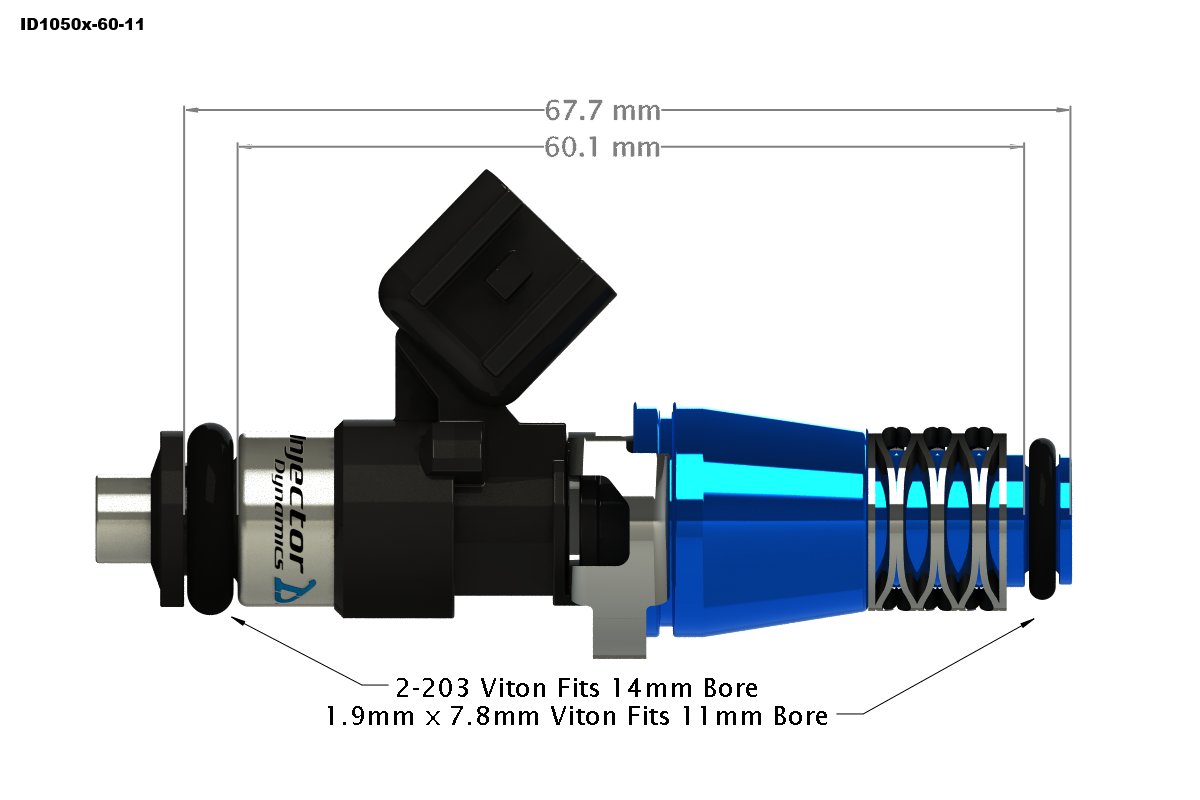

• Injector Length & O-Rings: 60mm Length / 11mm Top Adapter / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
