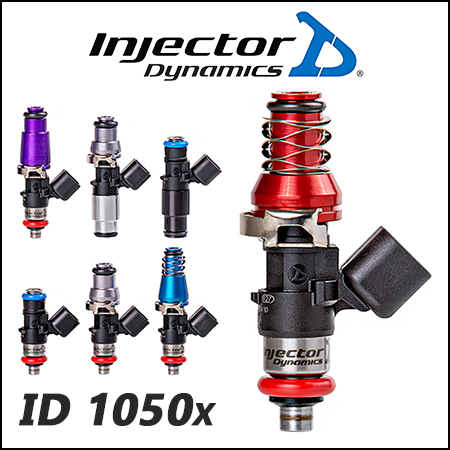

Injector Dynamics ID1050x Fuel Injectors Set (GM LS3 / LS7 / L76 / L92 / L99 / LSA - 34mm / 1065cc)

Deliver precise fuel metering and all-fuel reliability with the Injector Dynamics ID1050x Fuel Injectors Set (Part # idx1050.34.14.15.8) for GM LS3, LS7, L76, L92, L99, LSA, and LS9 V8 engines. As the evolution of the legendary ID1000, the ID1050x features corrosion-resistant internal construction and an optimized magnetic circuit that eliminates voltage and pressure sensitivity issues common in high-flow motorsport injectors.

Featuring compact body architecture and robust construction, this set of 8 injectors is fully compatible with ethanol, E85, methanol, and race gas while maintaining exceptional low pulse-width linearity for smooth gasoline idle. Configured in a 34mm short length with 14mm top and 15mm lower O-rings, this set plugs directly into standard LS3/LS7/LSA intake fuel rails.

Key Features & Benefits:

• 1065cc High-Performance Flow: Nominal flow rate of 1065cc/min @ 3.0 Bar (43.5 psi) supports high-output forced-induction and naturally aspirated builds up to 900+ horsepower.
• All-Fuel Compatibility: Corrosion-resistant stainless steel internal components ensure extended service life with ethanol, E85, and methanol.
• Superior Low-Pulse Linearity: Exceptional idle quality and low-speed drivability on gasoline combined with high-flow stability.
• Direct GM LS3/LS7/LSA Fitment: 34mm short length with 14mm top and 15mm lower O-rings with USCAR electrical connectors for direct installation.

Vehicle Fitment & Compatibility:

• Cadillac: 2009–2015 CTS-V (6.2L LSA Supercharged)
• Chevrolet: 2008–2013 Corvette C6 (6.2L LS3), 2006–2013 Corvette Z06 (7.0L LS7), 2009–2013 Corvette ZR1 (6.2L LS9), 2010–2015 Camaro SS (6.2L LS3/L99), 2012–2015 Camaro ZL1 (6.2L LSA), 2014–2015 Camaro Z28 (7.0L LS7), 2014–2017 SS Sedan (6.2L LS3), 2007–2014 GM Trucks & SUVs (6.2L L92/L94/L99)
• Holden: Commodore W427, Commodore E-HSV (LS3 / LS7 V8)
• Pontiac: 2008–2009 G8 GT (6.0L L76), 2009 G8 GXP (6.2L LS3)

Technical Specifications:

• Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 10.0 Bar (145.0 psi)

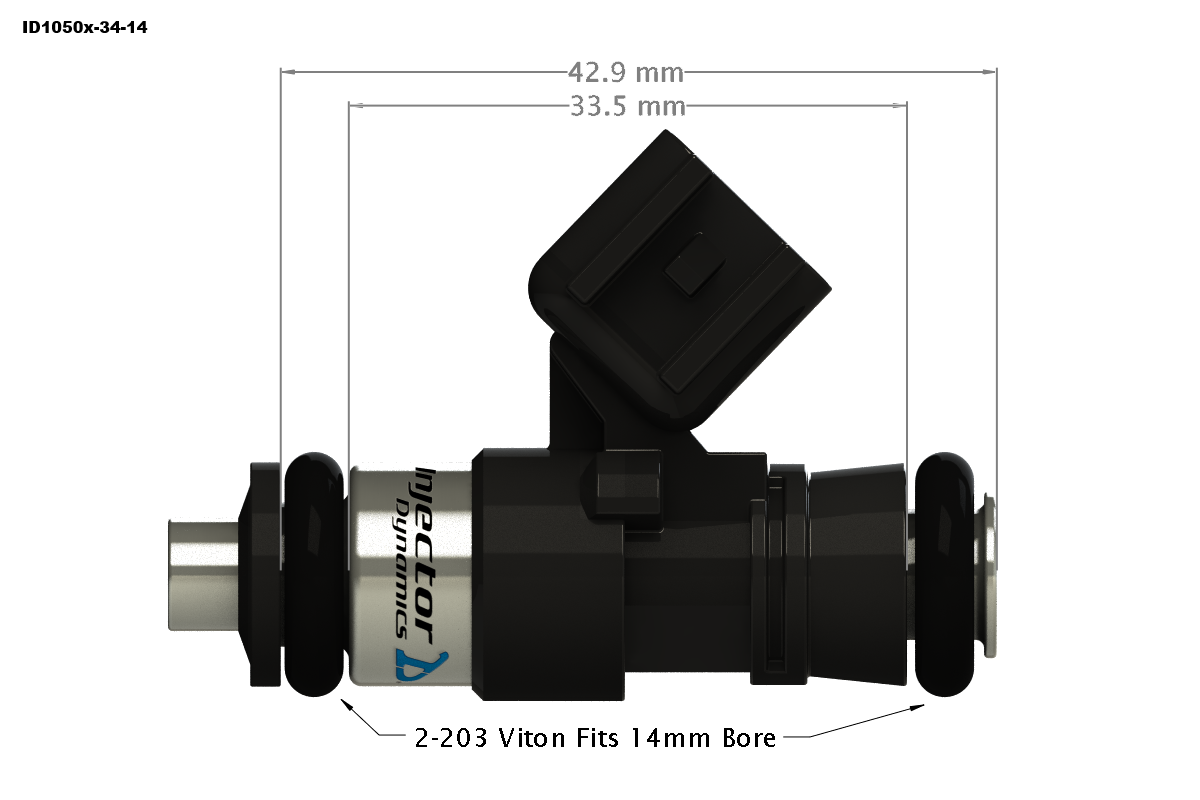

• Injector Length & O-Rings: 34mm Length / 14mm Top O-Ring / 15mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
