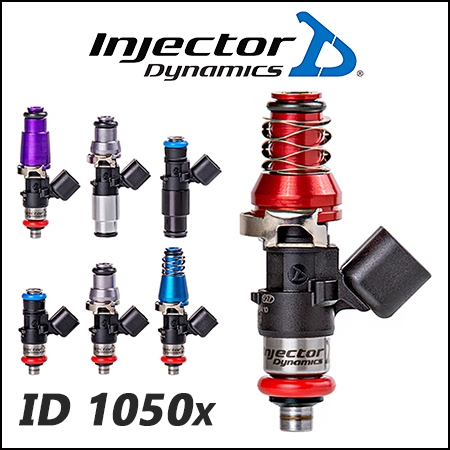

Injector Dynamics ID1050x Fuel Injectors Set (GM LS1 / LS6 / Pontiac Firebird & GTO - 14mm / 1065cc)

Deliver precise fuel metering and all-fuel reliability with the Injector Dynamics ID1050x Fuel Injectors Set (Part # idx1050.60.14.14.8) for GM LS1, LS6, LT1, Ford Mustang GT, and Pontiac Firebird / GTO V8 engines. As the evolution of the legendary ID1000, the ID1050x features corrosion-resistant internal construction and an optimized magnetic circuit that eliminates voltage and pressure sensitivity issues common in high-flow motorsport injectors.

Featuring compact body architecture and robust construction, this set of 8 injectors is fully compatible with ethanol, E85, methanol, and race gas while maintaining exceptional low pulse-width linearity for smooth gasoline idle. Configured in a 60mm length with 14mm top and 14mm lower O-rings, this set plugs directly into standard 60mm long-body 14mm intake fuel rails.

Key Features & Benefits:

• 1065cc High-Performance Flow: Nominal flow rate of 1065cc/min @ 3.0 Bar (43.5 psi) supports high-output forced-induction and naturally aspirated builds up to 900+ horsepower.
• All-Fuel Compatibility: Corrosion-resistant stainless steel internal components ensure extended service life with ethanol, E85, and methanol.
• Superior Low-Pulse Linearity: Exceptional idle quality and low-speed drivability on gasoline combined with high-flow stability.
• Direct 60mm / 14mm Fitment: Standard 60mm overall length with 14mm top and 14mm bottom O-rings and USCAR electrical connectors.

Vehicle Fitment & Compatibility:

• BMW: 1993–2001 540i / 740i (M60 / M62 4.0L/4.4L V8 with 14mm long-body rails)
• Chevrolet / GM: 1997–2004 Corvette C5 / Z06 (LS1 / LS6), 1998–2002 Camaro SS (LS1), 1993–1997 Camaro (LT1)
• Ford: 1988–2010 Mustang GT (5.0L V8 & 4.6L 2V/3V), 1999–2004 Mustang SVT Cobra (4.6L 4V Supercharged), 1999–2004 F-150 SVT Lightning / Harley-Davidson (5.4L Supercharged)
• Holden: Commodore VTII, VX, VY, and Monaro (5.7L LS1 V8)
• Pontiac: 1993–1997 Firebird / Trans-Am (LT1), 1998–2002 Firebird / Trans-Am (LS1), 2004 GTO (LS1)

Technical Specifications:

• Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 10.0 Bar (145.0 psi)

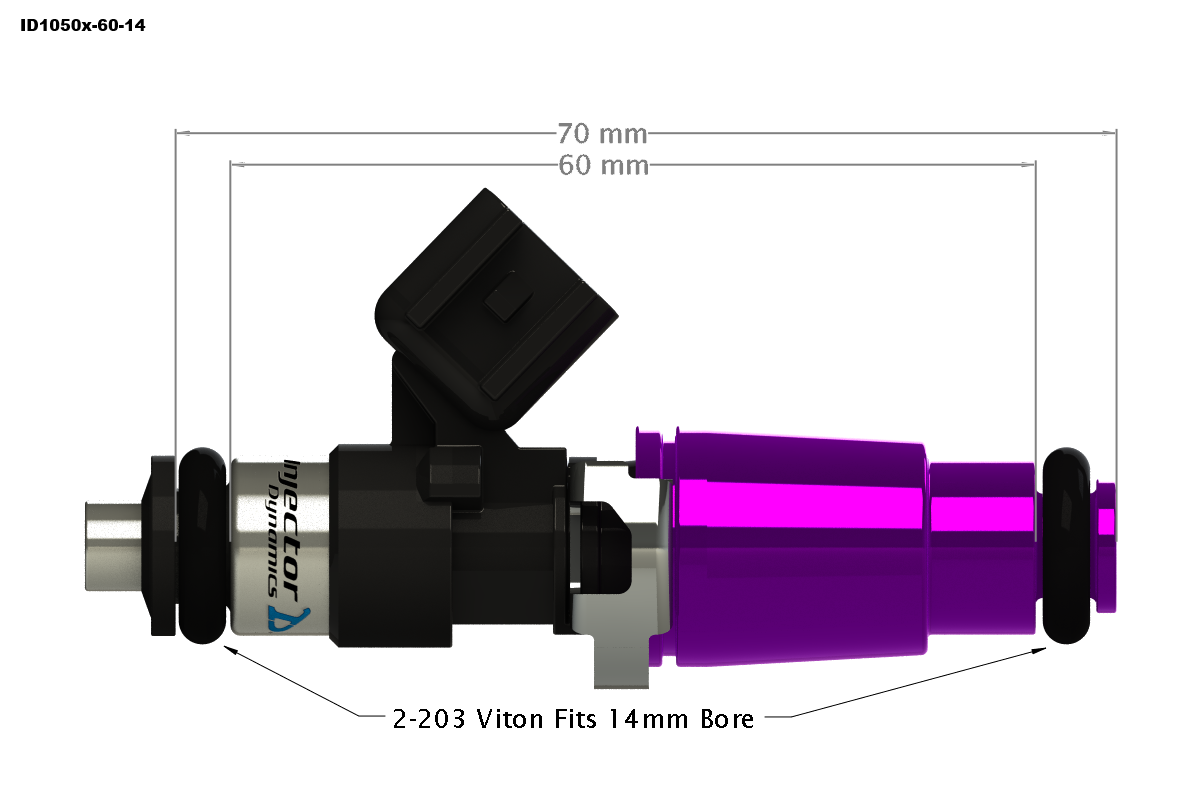

• Injector Length & O-Rings: 60mm Length / 14mm Top O-Ring / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
