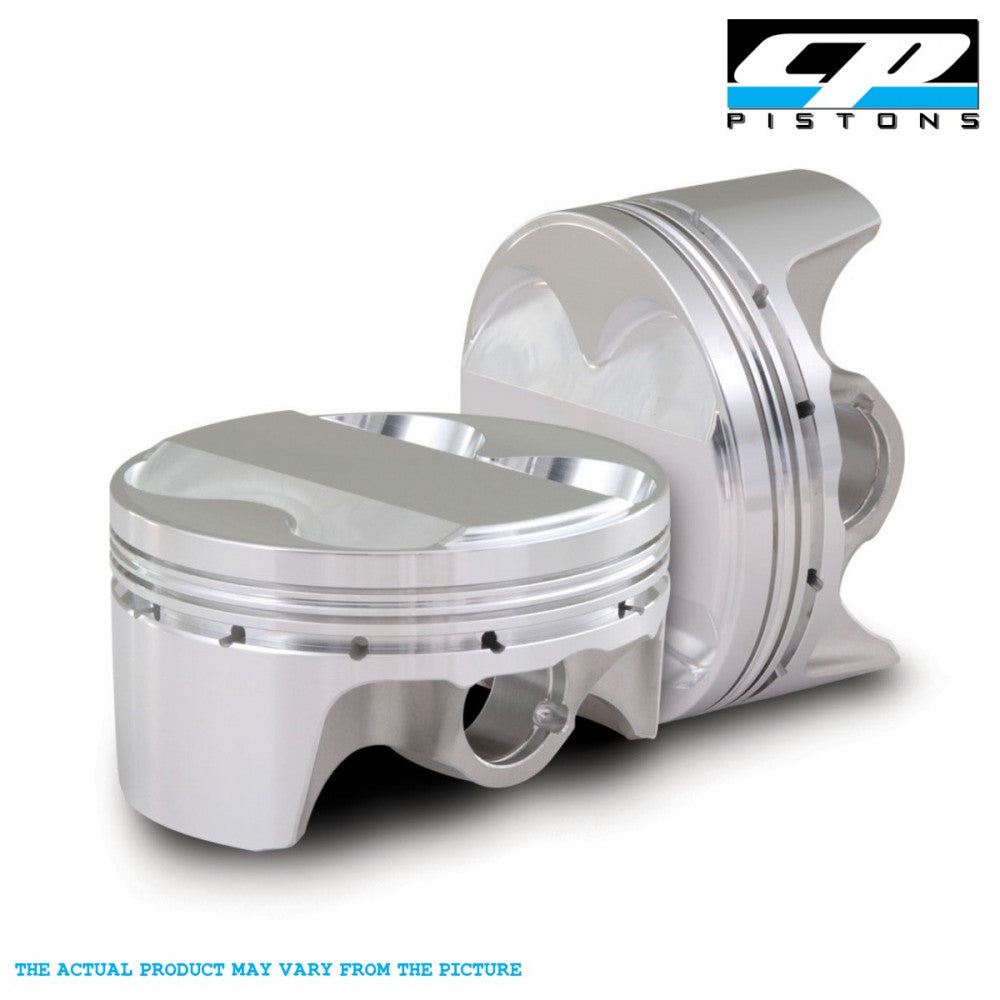

CP Piston & Ring Set - 86.5mm Bore (+0.5mm) - Toyota 1JZ-GTE / 2JZ-GTE

The CP Pistons forged piston and ring set is engineered for Toyota 1JZ-GTE and 2JZ-GTE engines featuring an 86.5mm bore and +0.5mm over-size.

While the piston forgings are capable of supporting 1000+ HP, the standard shelf kit includes 0.150-inch wall thickness wrist pins rated up to 800-900 HP. Pushing beyond 1000 HP requires upgrading to Heavy Duty (HD) tool steel wrist pins (such as CP part # 866-2250-20 CP 3C) to prevent pin flex and catastrophic bore ovaling.

Key Features & Benefits:

• Forged Aluminum Construction: Engineered to withstand extreme cylinder pressures, detonation resistance, and high-RPM thermal stress.
• Complete Set for 6 Cylinders: Includes precision-matched forged pistons, high-performance piston rings, wrist pins, and locks.
• Power Threshold Notice: Standard included wrist pins are rated for 800-900 HP; 1000+ HP builds require an upgraded 0.200"+ wall thickness wrist pin.

Technical Specifications:

• Bore / Size: 86.5mm (+0.5mm over-size)
• Compression Ratio: Compatible with 9.0:1 / 10.0:1 builds
• Application: Toyota 1JZ-GTE / 2JZ-GTE (Set of 6)
• Warranty: CP-Carrillo Limited Manufacturer Warranty
• Brand: CP Pistons (CP-Carrillo)
