CP-Carrillo Forged Pistons Kit (Toyota 2JZGTE - Standard 86mm / 8.5:1 CR)

Build a high-boost or turbocharged bottom end with the CP-Carrillo Forged Pistons Kit (Part # cppSC7459-6 / SC7459-6) for Toyota 2JZ-GTE 3.0L DOHC Twin-Turbo engines. Precision-engineered for low-compression turbocharged and forced-induction performance, this piston set delivers exceptional structural strength, thermal endurance, and ring-seal reliability under severe cylinder pressures.

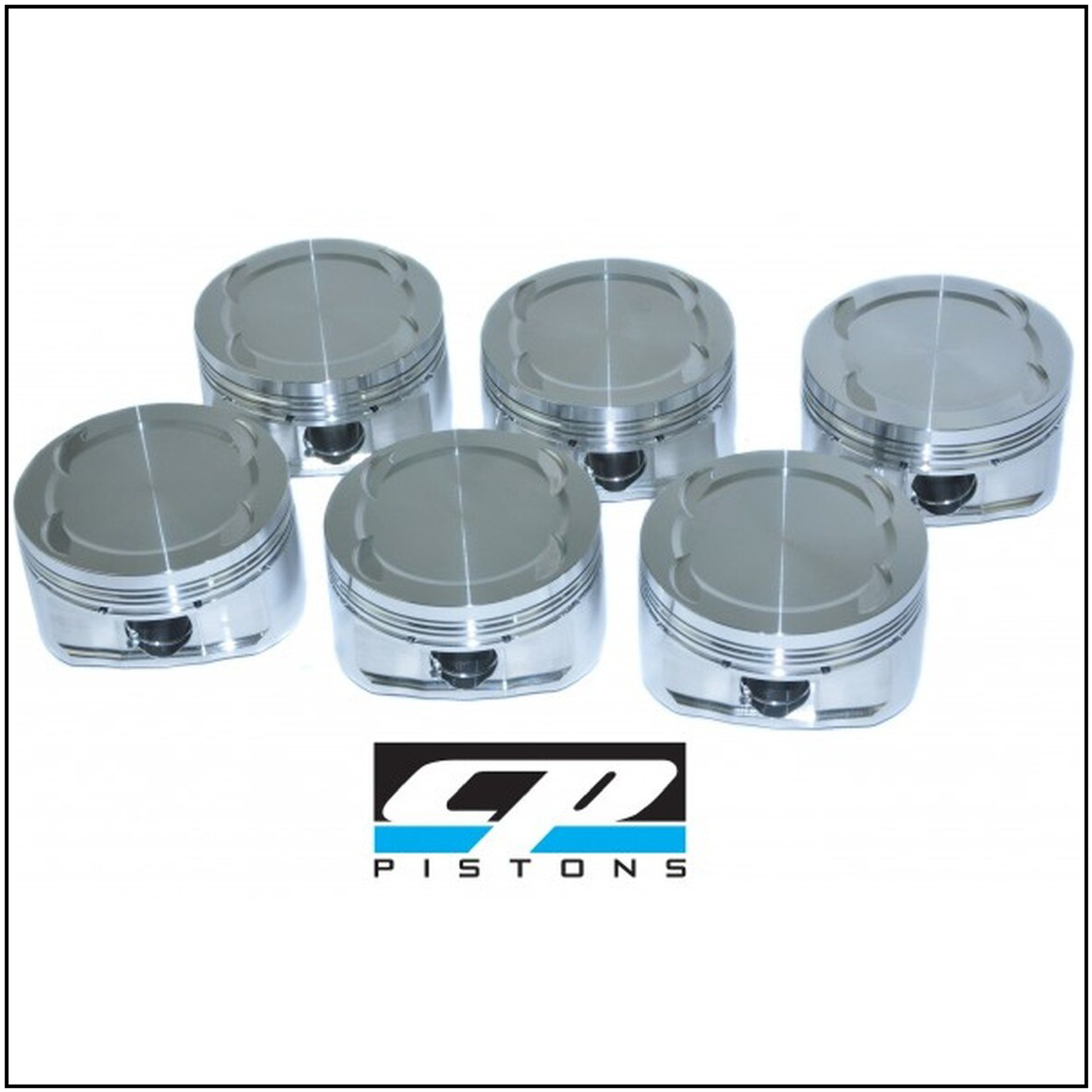

Forged from high-tensile 2618-T6 aluminum alloy, each piston features CNC-machined crown contours, anti-detonation grooves, deep valve reliefs to clear high-lift camshafts, and a high-strength skirt design. This complete set includes 6 forged pistons, high-carbon wrist pins, spirolocks, and high-performance ring sets.

Key Features & Benefits:

• Forged 2618-T6 Aluminum Construction: Aircraft-grade alloy provides high fatigue resistance and impact strength under extreme combustion loads.
• 8.5:1 Compression Ratio: Low-compression dome profile engineered specifically for 2JZGTE high-boost safety margins under extreme cylinder pressures.
• Standard 86.0mm Bore: Precision-engineered drop-in specification for standard bore 2JZ cylinder blocks.
• Complete Engine Set: Includes 6 forged pistons, premium 22mm wrist pins, carbon steel locks, and high-performance ring packages.

Technical Specifications:

• Engine Compatibility: Toyota 2JZ-GTE / 2JZGTE
• Bore Size: 86.0 mm (Standard Size / STD)
• Compression Ratio: 8.5:1
• Pin Diameter: 22 mm
• Material / Alloy: Forged 2618-T6 Billet Aluminum
• Warranty: CP-Carrillo Manufacturer Limited Warranty
• Brand: CP-Carrillo
