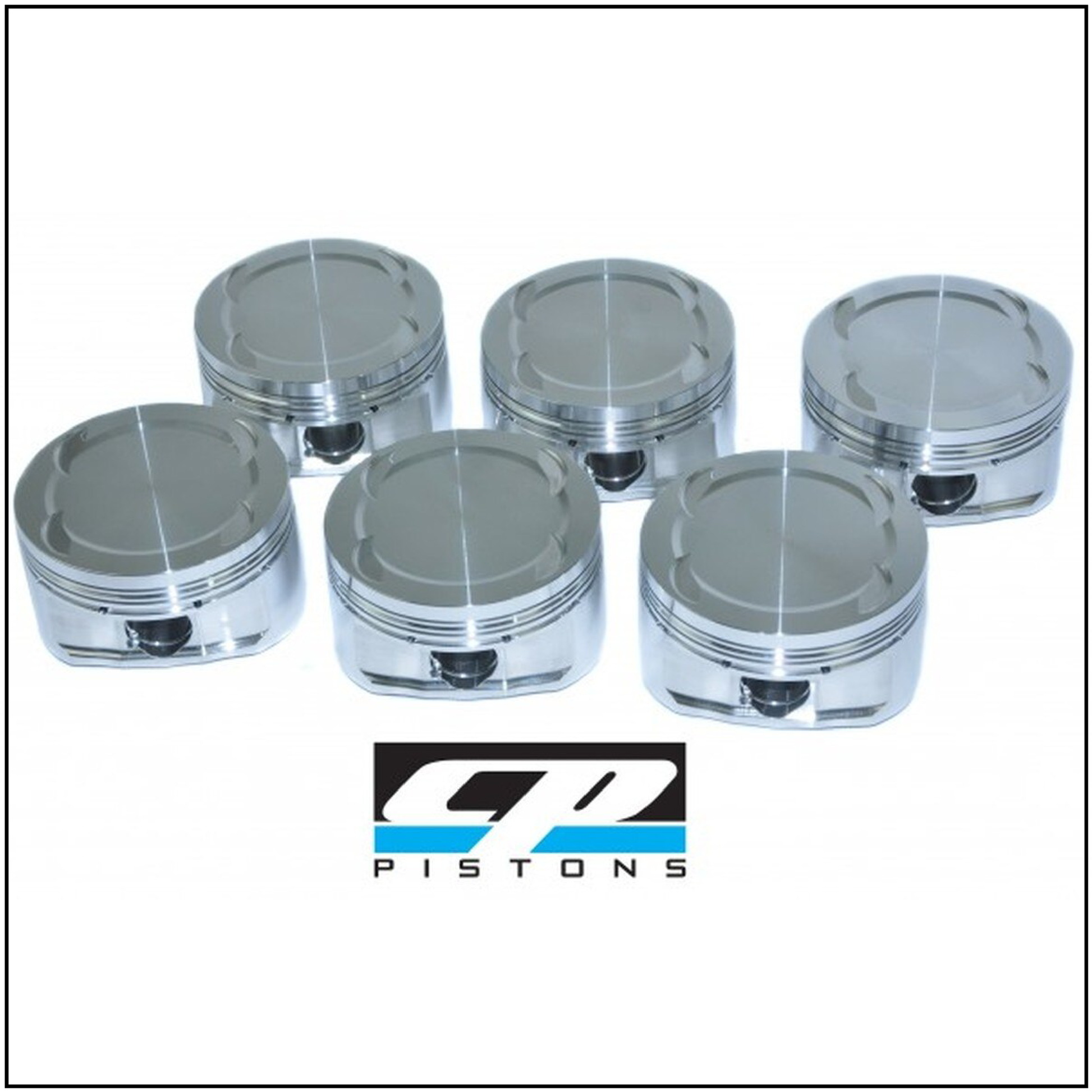

CP-Carrillo Forged Pistons Kit (Toyota 2JZGTE - 87.5mm +1.5mm / 10.0:1 CR)

Build a high-revving, high-horsepower bottom end with the CP-Carrillo Forged Pistons Kit (Part # cppSC7474-6 / SC7474-6) for Toyota 2JZ-GTE 3.0L DOHC Twin-Turbo engines. Precision-engineered for high-compression turbocharged and E85/flex-fuel performance setups, this piston set delivers exceptional structural strength, thermal endurance, and ring-seal reliability under severe cylinder pressures.

Forged from high-tensile 2618-T6 aluminum alloy, each piston features CNC-machined crown contours, anti-detonation grooves, deep valve reliefs to clear high-lift camshafts, and a high-strength skirt design. This complete set includes 6 forged pistons, high-carbon wrist pins, spirolocks, and high-performance ring sets.

Key Features & Benefits:

• Forged 2618-T6 Aluminum Construction: Aircraft-grade alloy provides high fatigue resistance and impact strength under extreme combustion loads.
• 10.0:1 High Compression Ratio: High-compression dome profile optimized for rapid spoolup, off-boost responsiveness, and E85/ethanol performance tuning.
• 87.5mm Bore Size (+1.5mm Oversize): Precision-machined 87.5mm diameter for bored or sleeved 2JZ cylinder blocks.
• Complete Engine Set: Includes 6 forged pistons, premium 22mm wrist pins, carbon steel locks, and high-performance ring packages.

Technical Specifications:

• Engine Compatibility: Toyota 2JZ-GTE / 2JZGTE
• Bore Size: 87.5 mm (+1.5 mm Oversize)
• Compression Ratio: 10.0:1
• Pin Diameter: 22 mm
• Material / Alloy: Forged 2618-T6 Billet Aluminum
• Warranty: CP-Carrillo Manufacturer Limited Warranty
• Brand: CP-Carrillo
