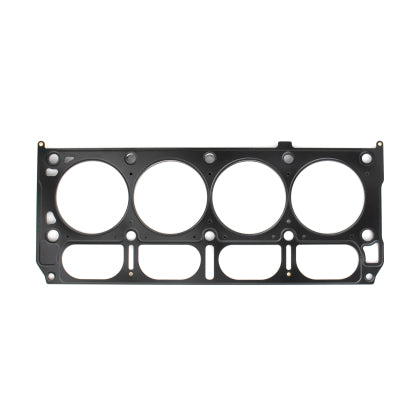

Cometic MLX Cylinder Head Gasket - GM LT1 / LT4 Gen V Small Block V8 (104.14mm / .028")

The Cometic MLX Multi-Layer Steel cylinder head gasket is engineered for 2014+ GM Gen V Small Block V8 engines (LT1, LT4) featuring a 104.14mm bore and .028" thickness.

Constructed from multiple layers of high-strength stainless steel with an integrated full-face shim/layer and embossed outer layers coated on both sides with heat-resistant Viton rubber (rated up to 250°C / 482°F), this gasket provides exceptional rebound, corrosion resistance, and clamp load retention under extreme cylinder pressures.

Key Features & Benefits:

• MLX Multi-Layer Construction: Features high-strength stainless steel layers with an integrated full-face shim/layer for superior sealing and rebound.
• Viton Rubber Coating: Heat-resistant Viton coating (up to 250°C / 482°F) on both sides conforms to surface finishes and withstands harsh combustion environments.
• Precision Bore & Thickness: Engineered specifically for 104.14mm bore GM LT1/LT4 applications with a .028" compressed thickness.

Technical Specifications:

• Application: GM Gen V Small Block V8 (LT1, LT4 6.2L)
• Gasket Type: MLX (Multi-Layer Steel with integrated full-face shim/layer)
• Bore Size: 104.14mm
• Compressed Thickness: 0.028"
• Material: Multiple layers of high-strength stainless steel
• Coating: Viton rubber (heat-resistant to 250°C / 482°F)
• Warranty: Cometic Gasket Limited Manufacturer Warranty
• Brand: Cometic Gasket
