Aeromotive Adjustable Regulator - EFI Bypass - (2) -6 Inlets--(1) -6 Return

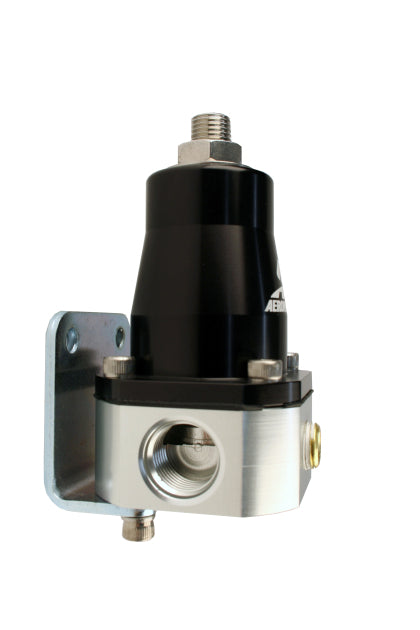

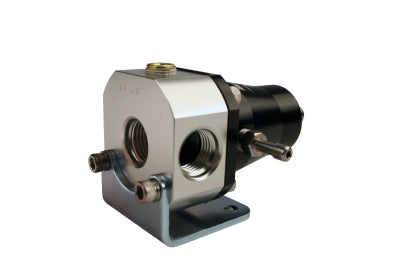

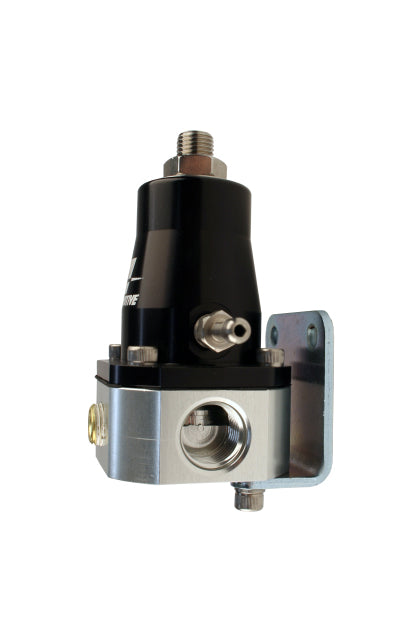

The Aeromotive Compact EFI Bypass Fuel Pressure Regulator (13129) is engineered to support applications up to 1000 HP in a compact, lightweight package.

CNC-machined from 6061-T6 billet aluminum with a bright dip black anodized finish, it features (2) ORB-06 inlet/outlet ports, (1) ORB-06 return port, a 1/8" NPT gauge port, and a vacuum boost port. Base pressure is adjustable from 40 to 75 PSI with a 1:1 boost reference rate.

Key Features & Benefits:

• High-Flow Capacity: Supports applications up to 1000 HP with high-flow EFI fuel pumps.
• Adjustable Pressure Range: Base pressure adjustable from 40 to 75 PSI with a 1:1 boost reference rate.

Technical Specifications:

• Material / Build: CNC-Machined 6061-T6 Billet Aluminum, Bright Dip Black Anodized Finish
• Pressure Range: 40 – 75 PSI (1:1 Boost Reference)
• Ports: (2) ORB-06 Inlets/Outlets, (1) ORB-06 Return, 1/8" NPT Gauge Port, Vacuum Port
• Warranty: Aeromotive Limited Warranty
• Brand: Aeromotive
