Injector Dynamics ID2600-XDS Fuel Injectors Set (Toyota Supra 2JZ-GTE / Nissan 300ZX / Porsche 911 / BMW E36 M3 - 14mm / 2600cc)

Deliver extreme fuel flow and precise low-pulsewidth metering with the Injector Dynamics ID2600-XDS Fuel Injectors Set (Part # idx2600.60.14.14.6) for 6-cylinder performance engines utilizing 14mm fuel rails. Developed in partnership with Bosch Motorsport, the ID2600-XDS is the highest-flowing injector offered by Bosch, flowing 50% more than the ID1700x to support 1,500+ horsepower on alcohol and E85 fuels.

Featuring all-new corrosion-resistant internal construction and Dual Slope Matching technology, the ID2600-XDS delivers linear flow matching in both linear and non-linear operating ranges for exceptional idle stability and cylinder-to-cylinder consistency. Configured in a standard 60mm length with 14mm top and 14mm lower O-ring adapters, this set of 6 injectors plugs directly into 14mm aftermarket and OEM intake fuel rails.

Key Features & Benefits:

• 2600cc High-Output Flow: Nominal flow rate of 2600cc/min @ 3.0 Bar (43.5 psi) supports extreme forced-induction and high-horsepower 6-cylinder builds.
• Dual Slope Flow Matching: Matched in both linear and non-linear pulse-width ranges for smooth idle, crisp throttle response, and precise fuel distribution.
• Extreme Fuel Compatibility: Corrosion-resistant internals fully compatible with Methanol, Ethanol, E85, race gas, and pump gasoline.
• Direct 14mm Rail Fitment: Standard 60mm overall length with 14mm top and 14mm bottom O-rings and USCAR electrical connectors.

Vehicle Fitment & Compatibility:

• BMW: 1996–1999 E36 M3 (S52), 1998–2000 M Coupe / Roadster (S52), 1996–1998 328i / 328is (M52)
• Buick: 1984–1987 Regal Turbo / Grand National / GNX (3.8L Turbo V6)
• Holden: Commodore VT, VXII, VS, VY (3.8L V6 / Supercharged V6)
• Nissan: 1990–1996 300ZX Twin Turbo Z32 (VG30DETT with 14mm fuel rail conversion)
• Pontiac: 1989 Trans Am 20th Anniversary Turbo (3.8L Turbo V6)
• Porsche: 1984–1998 911 / 993 (Naturally Aspirated), 1999–2009 911 Turbo / GT2 / GT3 (996 / 997.1)
• Toyota: 1993–1998 Supra Turbo JZA80 (2JZ-GTE with 14mm fuel rail)

Technical Specifications:

• Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
• Maximum Differential Pressure: 9.0 Bar (130.5 psi)

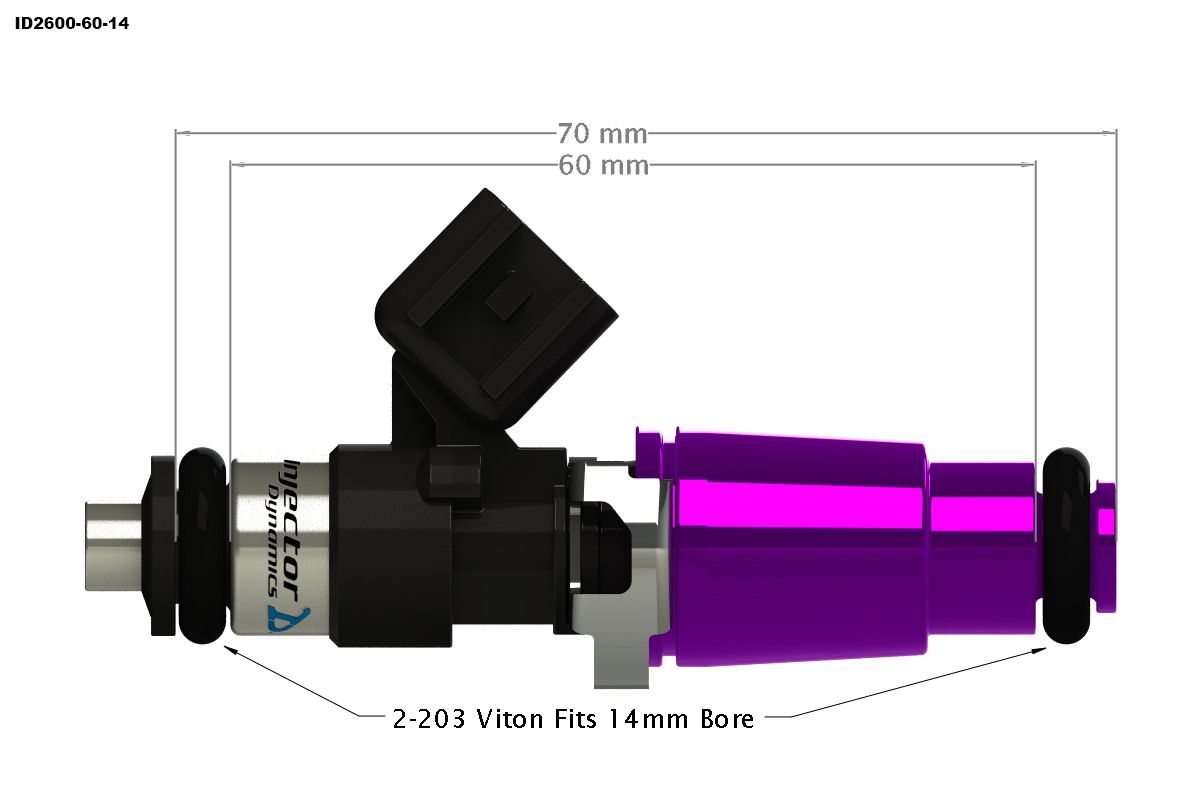

• Injector Length & O-Rings: 60mm Length / 14mm Top O-Ring / 14mm Lower O-Ring
• Electrical Connector: USCAR
• Fuel Compatibility: Methanol, Ethanol, E85, Gasoline (Not compatible with MTBE, ETBE, TAME, or Nitromethane)
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
