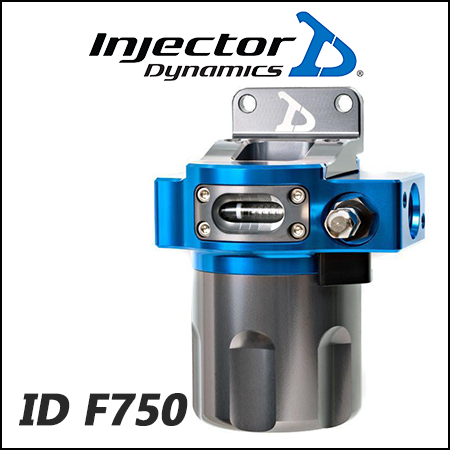

Injector Dynamics ID F750 High-Flow Performance Fuel Filter

Protect high-performance fuel injectors and optimize fuel system delivery with the Injector Dynamics ID F750 High-Flow Performance Fuel Filter (Part # idxF750). Engineered to meet strict Bosch OE specifications for electronic fuel injectors, the ID F750 provides superior filtration efficiency without restricting fuel flow.

Built with anodized billet aluminum housing and internal delta-P pressure monitoring ports, the ID F750 delivers a nominal flow rate of 750 L/h at 1.1 psi pressure drop and supports up to 10.0 Bar (145 psi) maximum fuel pressure. Compatible with all known fuels including E85, ethanol, methanol, race gas, and pump gasoline.

Key Features & Benefits:

• Bosch OE Specification Filtration: Protects high-tolerance electronic fuel injectors from microscopic particulate damage and clogging.
• Extreme High-Flow Performance: Delivers 750 L/h at 1.1 psi pressure drop (1000 L/h at 1.9 psi) to support 1000 fuel systems.
• Universal Fuel Compatibility: Fully compatible with E85, ethanol, methanol, race fuel, and pump gas without element degradation.
• Billet Anodized Housing: Durable lightweight anodized housing equipped with SAE -8 O-Ring Barb / -8AN ORB fluid connections.

Technical Specifications:

• Nominal Flow Rate: 750 L/h @ 7.5 kPa (1.1 psi) pressure drop / 1000 L/h @ 13 kPa (1.9 psi) pressure drop
• Maximum Operating Pressure: 10.0 Bar (145.0 psi)
• Fluid Connections: SAE -8 O-Ring Barb / -8AN ORB
• Weight: 700g
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Race Fuel
• Warranty: Injector Dynamics Limited Manufacturer Warranty
• Brand: Injector Dynamics
